Retaining Walls Designer

Welcome! 👋

During my early days in structural engineering, I developed a Cantilever Concrete Retaining Wall Designer to assist with the design and analysis of retaining walls using Python. Today, I’m excited to present its modern version as a web application, powered by Streamlit.

Software developed to streamline the design and detailing process of retaining walls. The program allows:

Features 🚀

• Define the parameters
• Define the dimensions
• Design the reinforcement (moment)
• Visualization

Demo video

Test the App

Installation 🖥️

To run the app locally:

1. Clone this repository:

    git clone https://github.com/HM-Mahibullah/retaining_wall.git


2. Navigate to the project directory:

    cd retaining_wall


3. Install the required dependencies:

    pip install -r requirements.txt


4. Launch the Streamlit app:

    streamlit run streamlit_app.py


streamlit run streamlit_app.py

The PyQt5 App is also present! 🖥️

If you want to try the Desktop App:

1. Navigate to the project directory:

    cd retaining_wall


2. In the file requirements, uncomment the line:

    # PyQt5==5.15.11
    # PyQt5_sip==12.15.0


3. Install the required dependencies:

    pip install -r requirements.txt


4. Launch the Streamlit app:

    python contencion.py


Contributing 🤝

I welcome contributions to enhance the Cantilever Concrete Retaining Wall Designer. To contribute:

1. Fork the repository.
2. Create a new branch for your feature or bug fix.
3. Commit your changes with clear and concise messages.
4. Submit a pull request detailing your changes.

License 📄

This project is licensed under the MIT License. See the LICENSE file for details.

Acknowledgments 🙏

A heartfelt thank you to the open-source community and the developers of Streamlit for providing the tools that made this project possible.

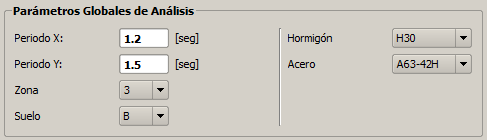

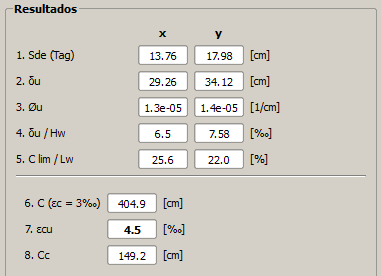

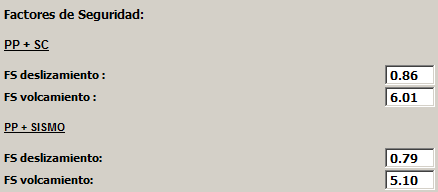

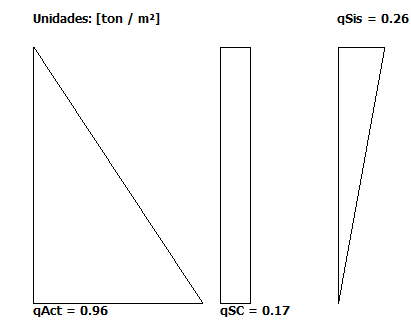

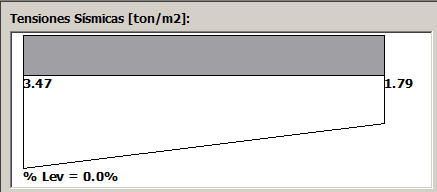

Gallery
